Gamma Curves
Surgical control over gamma curves within DaVinci Resolve. Adjust toe, shoulder, and midpoint independently with sub-stop accuracy — every move expressed in linear-light stops, readable and reproducible.
- • Six DCTLs — three-point through seven-point control
- • DaVinci Wide Gamut and ACEScct, matched automatically
- • Built-in real-time curve overlay for every variant
Before and after.
Image courtesy "Angels" by Taddeh Vartanian
Image courtesy "Angels" by Taddeh Vartanian
Image courtesy "Angels" by Taddeh Vartanian
6 DCTLs.
Surgical control over gamma curves within DaVinci Resolve. Adjust toe, shoulder, and midpoint independently with sub-stop accuracy — every move expressed in linear-light stops, readable and reproducible.

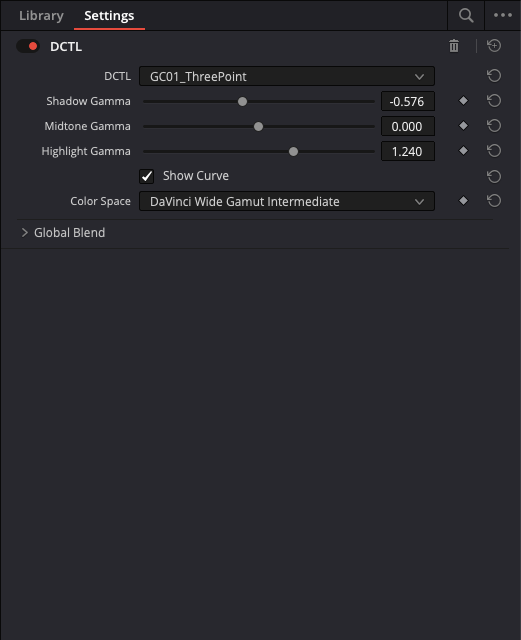

Three Point
3 control points, free-drag gamma. Black & white fixed. Fast, intuitive shaping.
Three Point Precise
Gamma via dropdown, exactly 0.25-stop steps. Match grades across clips.

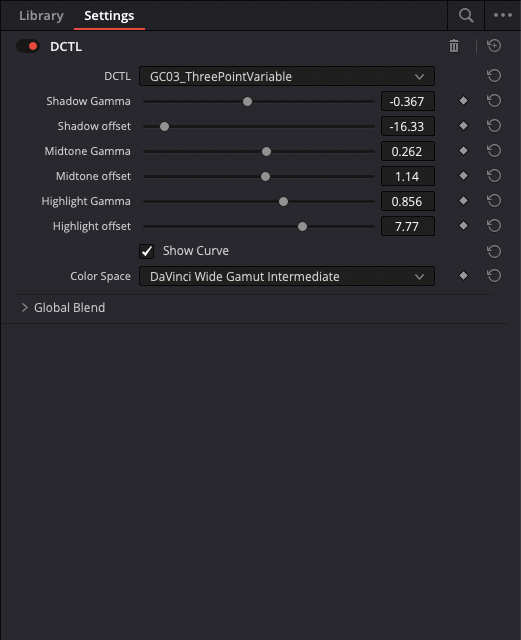

Three Point Variable
Adds ±20% X-position control per point. Move pivots off the standard 25 / 50 / 75.
Three Point Variable Precise
Gamma and position both gridded — 0.25 stops / 5% steps.

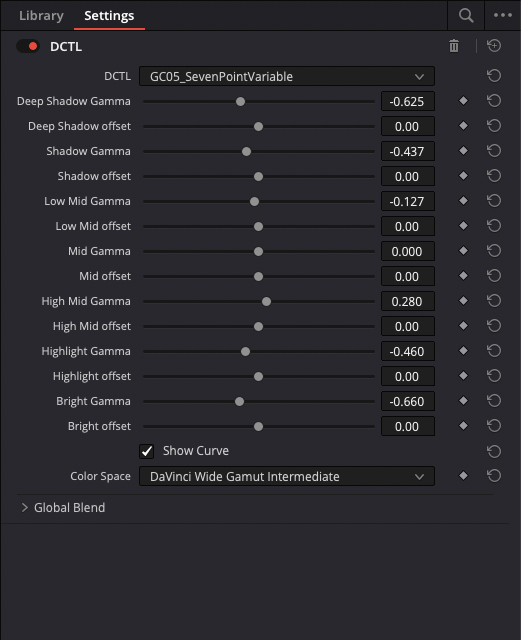

Seven Point Variable
7 points every 12.5%, gamma + ±10% position sliders. Detailed sculpting.
Seven Point Variable Precise
Seven points, all parameters gridded — 0.25 stops / 2.5% steps. The primary look tool.
Built for precision.
Middle gray at 50% — always
The curve is normalised so middle gray sits at exactly the 50% position, regardless of log space. Adjustments land where your eye expects them.
Stop-based adjustments
Every gamma slider is calibrated in linear-light stops — the unit colourists already think in. ±4 stops of range, 0.25-stop precision in Precise variants.
True gamma, not luma
Adjustments apply equally across R, G, and B. A true gamma shift preserves the relationship between channels — no luma-extraction artefacts.
Monotone spline interpolation
Fritsch–Carlson monotone cubic Hermite interpolation passes exactly through every control point and is guaranteed never to invert. No accidental tonal reversals.
Technical detail.
Replace guesswork with measurement.
Gamma Curves DCTLs · v1.0.0 — one-time purchase, lifetime updates.
